Details
ESCAPE 510 Wing
Its performance profile will match intermediate and advanced riders who want a wing that rides fast and effortlessly with impeccable control.
Its profile and area have been tailored to provide enough power for the upwind legs without restraining the downwind speed. Its flat arch and twisted profiles make it very tolerant, even when operating close to the surface.
The race wing benefits from the same reliable construction in Pre-preg carbon molded over a Forged carbon core for maximum stiffness.
Developed by our best riders to turn the upwind mark first and sail lower and faster down the wind, this wing shows impressive efficiency to dominate the competition.
Area: 510cm²
Aspect Ratio: 6.4
Weight: 0.63 kg
Titan fuselage 60 Kite
The TITAN fuselage 60 is a fuselage that connectes to F-ONE aluminium or carbon masts via a TITAN connection.
It is made of aluminium 6061, CNC machined with high precision and fully anodized. The TITAN fuselage 60 must be fasten to the mast or mast foot using three M6x25mm tapered head screws.
At the forward end, this fuselage can accept all wings of any size with FCD connectors. Once it is plugged in, the front wing must be fastened with 210mm main rod. A stabilizer can be fastened at the back using two M6x16mm tapered head screws . The craddle for the stabilizer was designed to keep the foil in trim when using F-ONE stabilizers.
Length: 60cm
Weight: 0.61 kg
TITAN MAST FOOT
The TITAN mast foot is the connecting part that makes the F-ONE aluminium masts compatible with all TITAN fuselages and wings.
It is made of 6061 aluminium, CNC machined with high precision and fully anodized. To install the TITAN mast foot, it should be inserted into the bottom end of the aluminium mast and fastened with two M6x25mm tapered head screws.
Alu mast 85 cm
The F-ONE aluminium mast can be used for all disciplines, kite, surf, sup and windsurf.
The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another. A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).
Stab C300
Versatile and progressive, the C300 stabilizer can be combined with any front wings and fits a very large range of practices.
Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.
Built in Carbon Composite and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.
ESCAPE 510 INCLUDED EQUIPMENT
EVA COVER
Technology
The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.
This aluminum alloy boasts some very good mechanical properties and can be processed in many ways while also offering a natural resistance to corrosion.
Produced from an extrusion process, our aluminum profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.
Machining blocks of aluminum 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminum. All parts are fully anodized and stainless-steel inserts are fitted with insulating gel when fastening is required.
We have patented the FCD assembly concept because this is a critical aspect of the kitefoil. It drives the reliability and ease of use for assembling and taking the foil apart for transportation, as much as the repeatability of the trim between the front and rear wings.
The main benefit of the system lies in the main screw that maintains the front wing with the rest of the foil. This screw is placed longitudinally and is therefore only stressed in tension instead of shear or bending. The whole foil can be tightened up with everything working in a sound mechanical way.
To gain some precision, robustness and packed-up volume, the screw is combined with a squared, conical assembling system, which has been proven as the best mechanical setup to lock any motion or degree of freedom between the parts, while also contributing greatly to tensional resistance.
Pre-preg makes the foils stiffer and stronger. With pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer. This guarantees a perfect ratio between epoxy and carbon and represents the highest quality process. It is then cured at high temperature, bringing strength and durability.
Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.
The CARBON COMPOSITE construction includes a full layer of carbon laminate on the board’s bottom and deck making it incredibly light and yet surprisingly reliable.

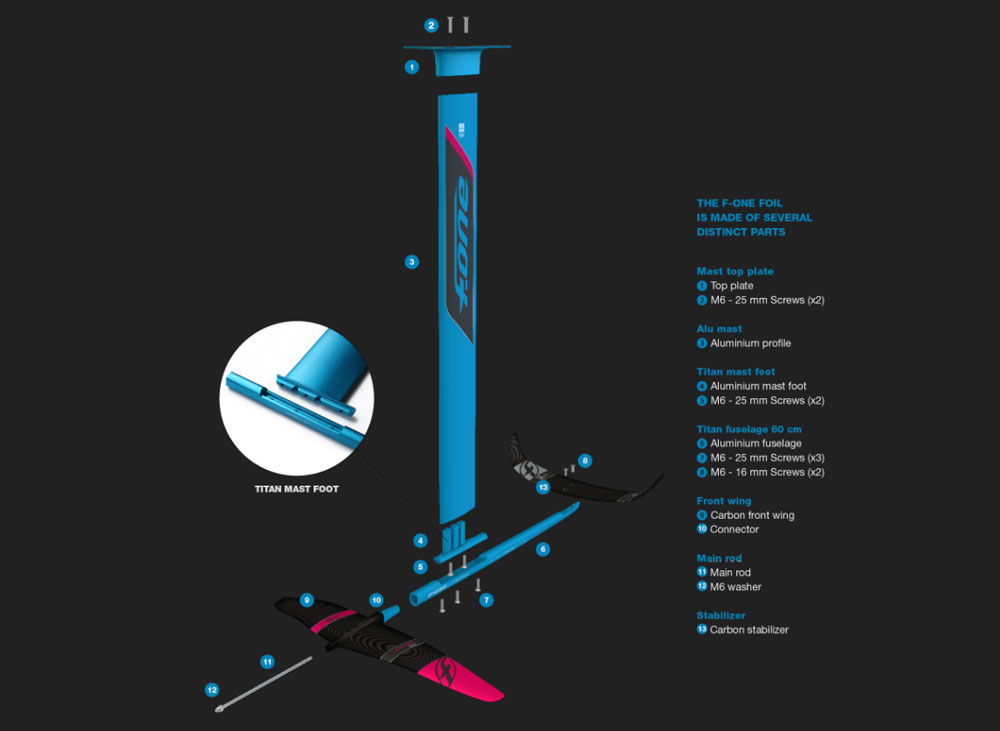

Assembly
